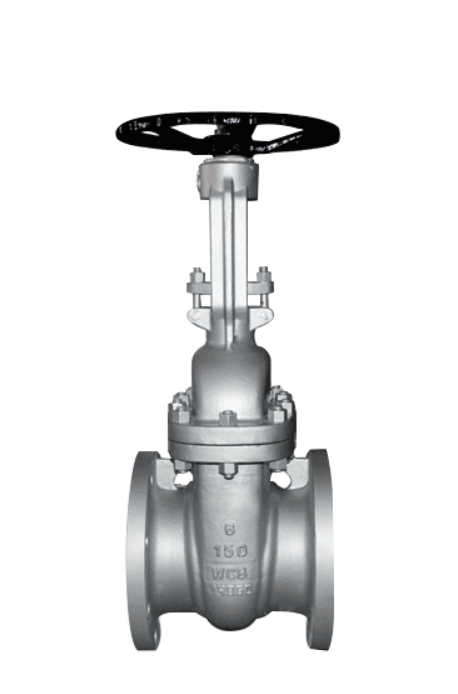

Wedge type gate valves

Product Description

Wedge type gate valves are manufactured to the latest edition of API Standard 600 and tested to API Standard 598.

Applicable Standards:

– gate valves design according to API600, ASME B16.34

– Face to face ASME B16.10

– End Flanges ASME B16.5/ASME B16.47

– Buttwelding ends ASME B16.25

– Inspection and test API 598

Pressure Range:

– ASME CL150, CL300, CL600, CL900, CL1500

Working temp:

– -196°C~650°C

Size Range:

– 2”~36”

End Connection:

– Flanged, butt weld

Body Material:

– A216 WCB, A217 WC6/WC9, A351 CF8/ CF8M, A352 LCB/LCC


– manual, handwheel, gear, electric, pneumatic, hydraulic

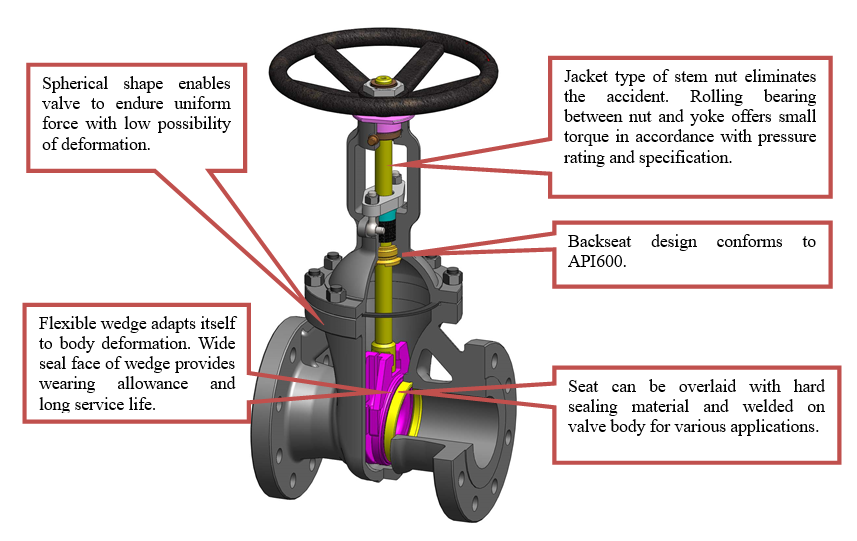

Design Description:

– Outside Screw and York

– Bolted Bonnet and Pressure Seal

– Flexible wedge, fully guided

– Welding seat rings or Renewable seat rings

– Rising stem and non-rising stem

– Available with gear operator

– Flange Ends

– Buttwelding Ends
